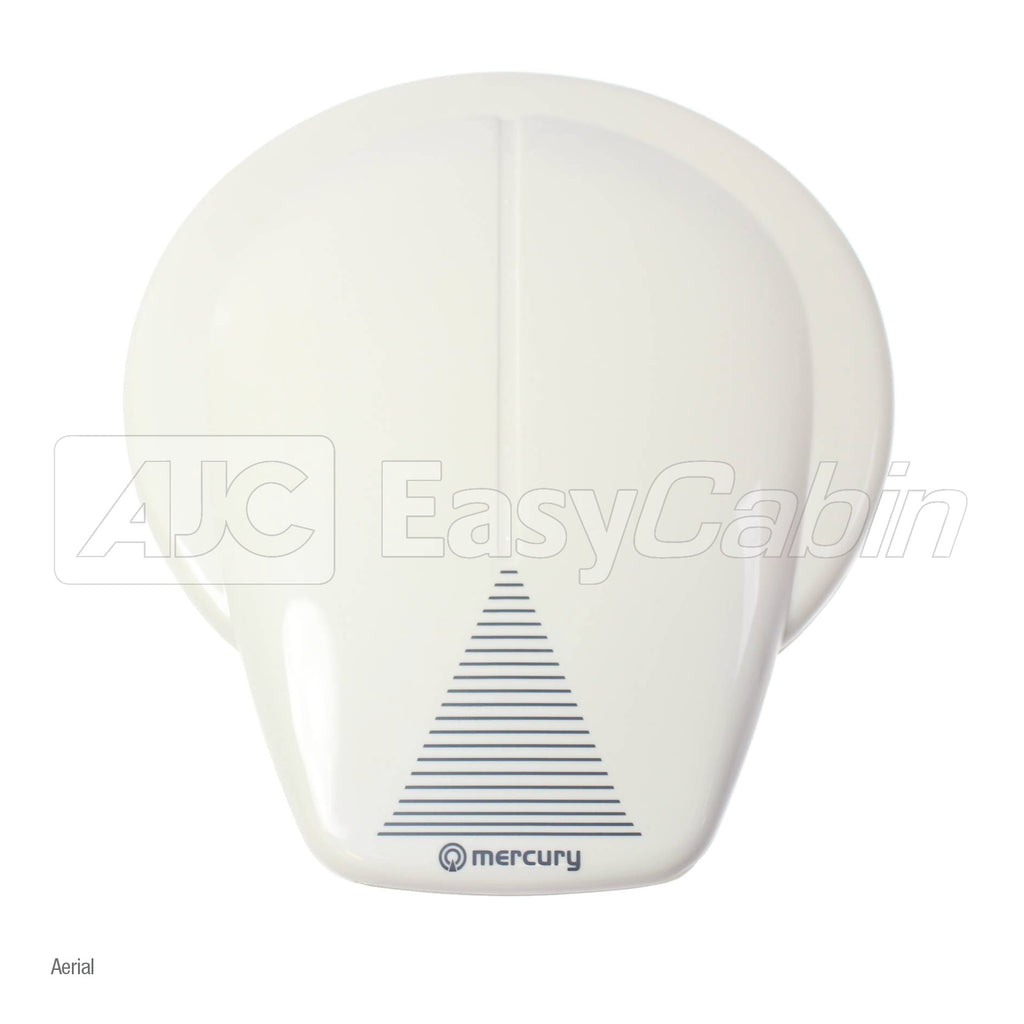

Caravan Aerial - Digital (Sleeper)
£35.64
Skip to product information
The caravan TV aerial can be mounted on a pole of up to 38mmØ using the clamp supplied (pole not supplied).
Supports TV signals in UHF/VHF as well as DAB and FM Radio.
Caravan Aerial Technical Specifications
Power supply 230Vac, 50Hz (3W) / 12V / 24V dc, 100mA
Frequency range : UHF 470MHz - 862MHz
Frequency range : VHF 40MHz - 230MHz
Gain : UHF 20dB
Gain : VHF 20dB
Max. loss 2dB
Output level 100dBµV max.
Impedance 75 ohms
Dimensions 260 x 334 x 80mm
Weight 1.5kg
Caravan Aerial - Digital (Sleeper)
£35.64
Supports TV signals in UHF/VHF as well as DAB and FM Radio.
Caravan Aerial Technical Specifications
Power supply 230Vac, 50Hz (3W) / 12V / 24V dc, 100mA
Frequency range : UHF 470MHz - 862MHz
Frequency range : VHF 40MHz - 230MHz
Gain : UHF 20dB
Gain : VHF 20dB
Max. loss 2dB
Output level 100dBµV max.
Impedance 75 ohms
Dimensions 260 x 334 x 80mm
Weight 1.5kg
